Blade Access Platform

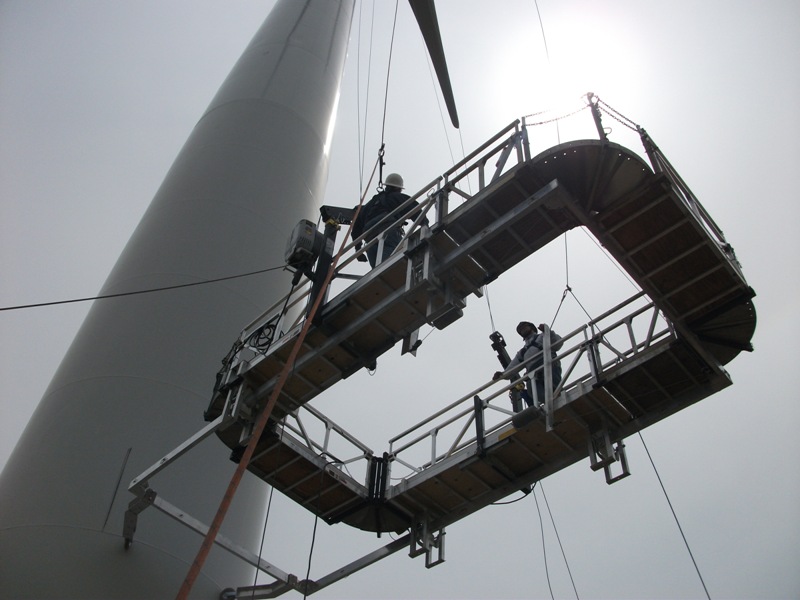

For blade inspection and repair operations, suspended platforms offer a safe, productive, and cost-effective alternative to cranes, ground-based lifts and rappelling solutions.

Power Climber Wind offers a range of solutions to put workers on blade surfaces for the full range of work performed at height. From single point inspection to 360° access platforms to specialized custom-designs, by configuring safe, reliable platforms, rigging equipment, and work procedures, we help contractors perform up-tower work more efficiently than ever before.


	5ft Blade Access Platform (Americas)	2m Blade Access Platform (EU/Asia)	360° Blade Access Platform (Americas)	360° Blade Access Platform (EU/Asia)
Platform Capacity	750 lbs	280 kg	750 lbs	360 kg (live load)
Platform Weight	600 lbs	220 kg	2,210 lbs	920 kg
Dimensions	60.25 in L x 29.375 in W x 31 to 45 in (variable) H	2m L x 740mm W x 1.1m H	10 ft 9 3/16 in x 13 ft 7 in outside	4729 mm x 3238 mm
Hoisting speed	35 ft/min	8.5 m/min	35 ft/min	8.5 M/min
Working load limit of hoist	1,500 lbs	500 kg / 650 kg hoist capacity	1,500 lbs	500 kg / 650 kg
